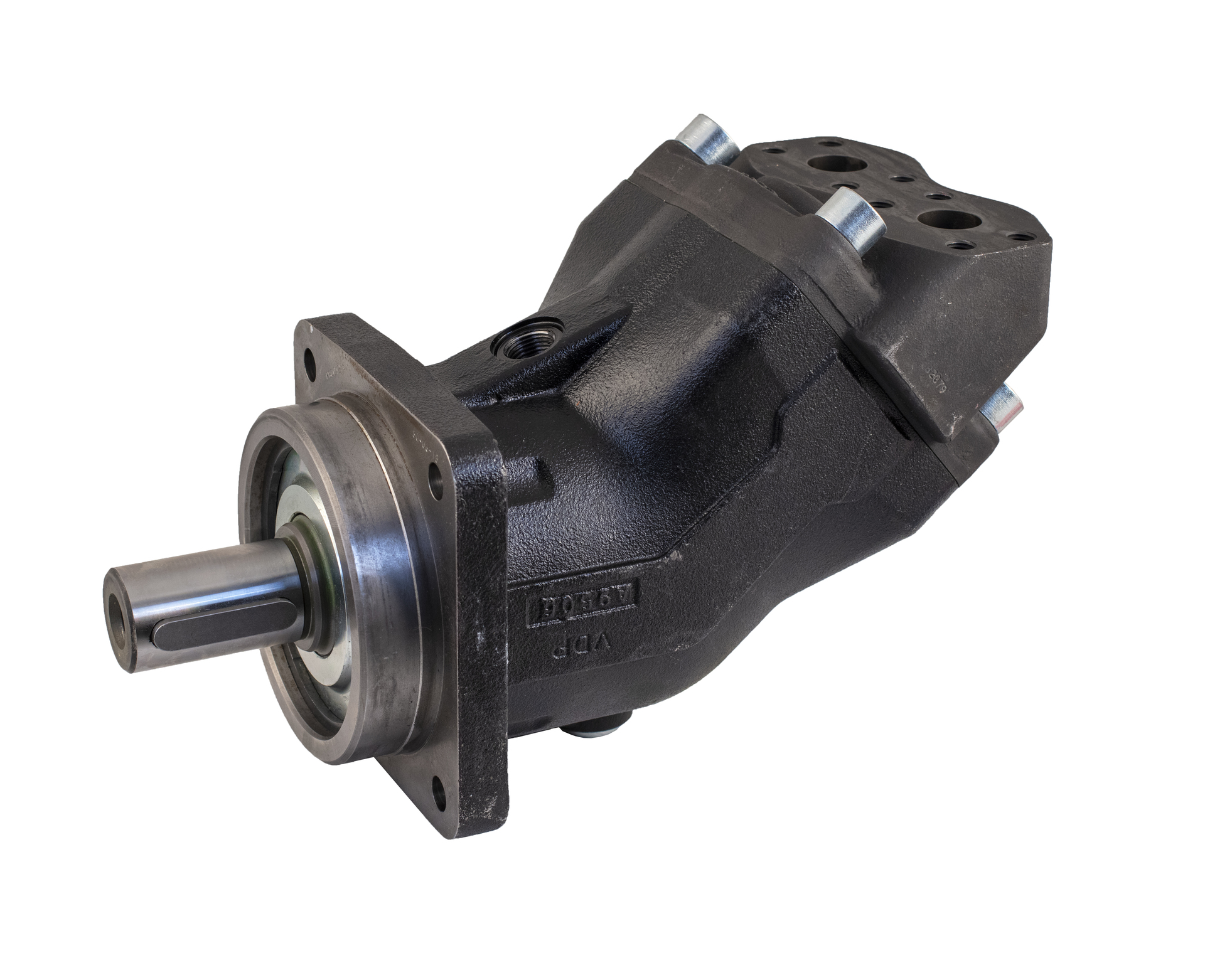

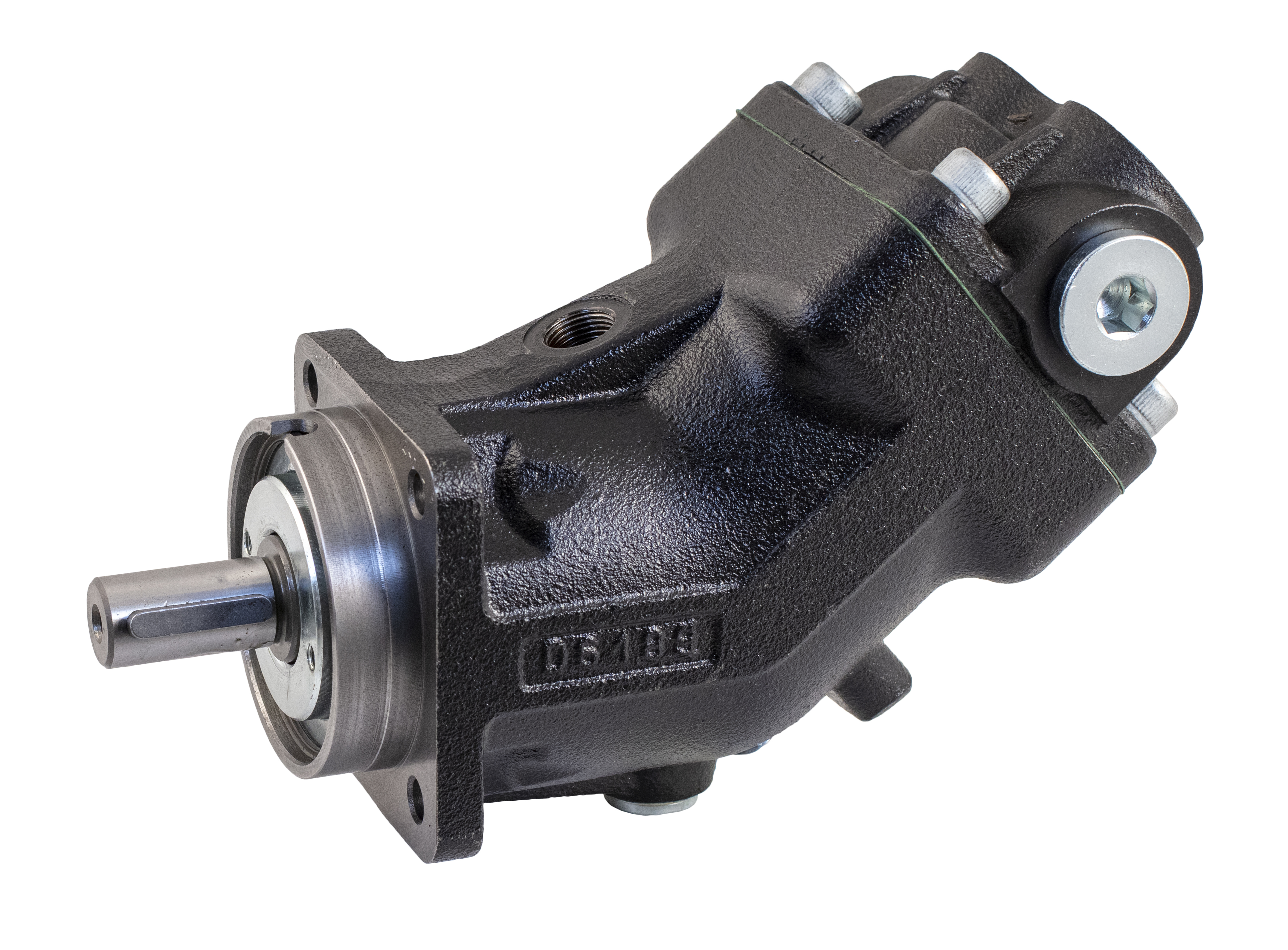

OMFB HPM - ISO - Axial piston motor with cylindrical shaft
Print brochure
Tiedot tiivistettynä
| Koodi | Laipan ulko Ø (mm) | Kierr. tilav. (cm3) | Suurin käyttöpaine (bar) | Max. r/min jatkuva / hetkell. | Akseli | OMFB koodi | Liitäntä | Pakkauskoko (kpl) |
|---|---|---|---|---|---|---|---|---|
| HPM012-3019-D20-BSPP | 80mm | 12 | 350/400 | 6300/6800 | 20mm | 24004104012 | G3/4" | 1 |
| HPM012-3019-D25-BSP | 80mm | 12 | 350/400 | 6300/6800 | 25mm | 24004404012 | G3/4" | 1 |
| HPM017-3019-K25-BSP | 80mm | 17 | 350/400 | 6300/6800 | 25mm | 24004404017 | G3/4" | 1 |
| HPM020-3019-K25-BSPP | 80mm | 20 | 350/400 | 6300/6800 | 25mm | 24204401020 | G3/4" | 1 |
| HPM025-3019-K25-BSPP | 100mm | 25 | 350/400 | 6300/6800 | 25mm | 24204401025 | G3/4" | 1 |
| HPM025-3019-K25-S90 | 100mm | 25 | 350/400 | 6300/6800 | 25mm | 24204413025 | 90 SAE 6000psi 1/2" | 1 |
| HPM025-3019-K30-S90 | 100mm | 25 | 350/400 | 6300/6800 | 30mm | 24204713025 | 90 SAE 6000psi 1/2" | 1 |

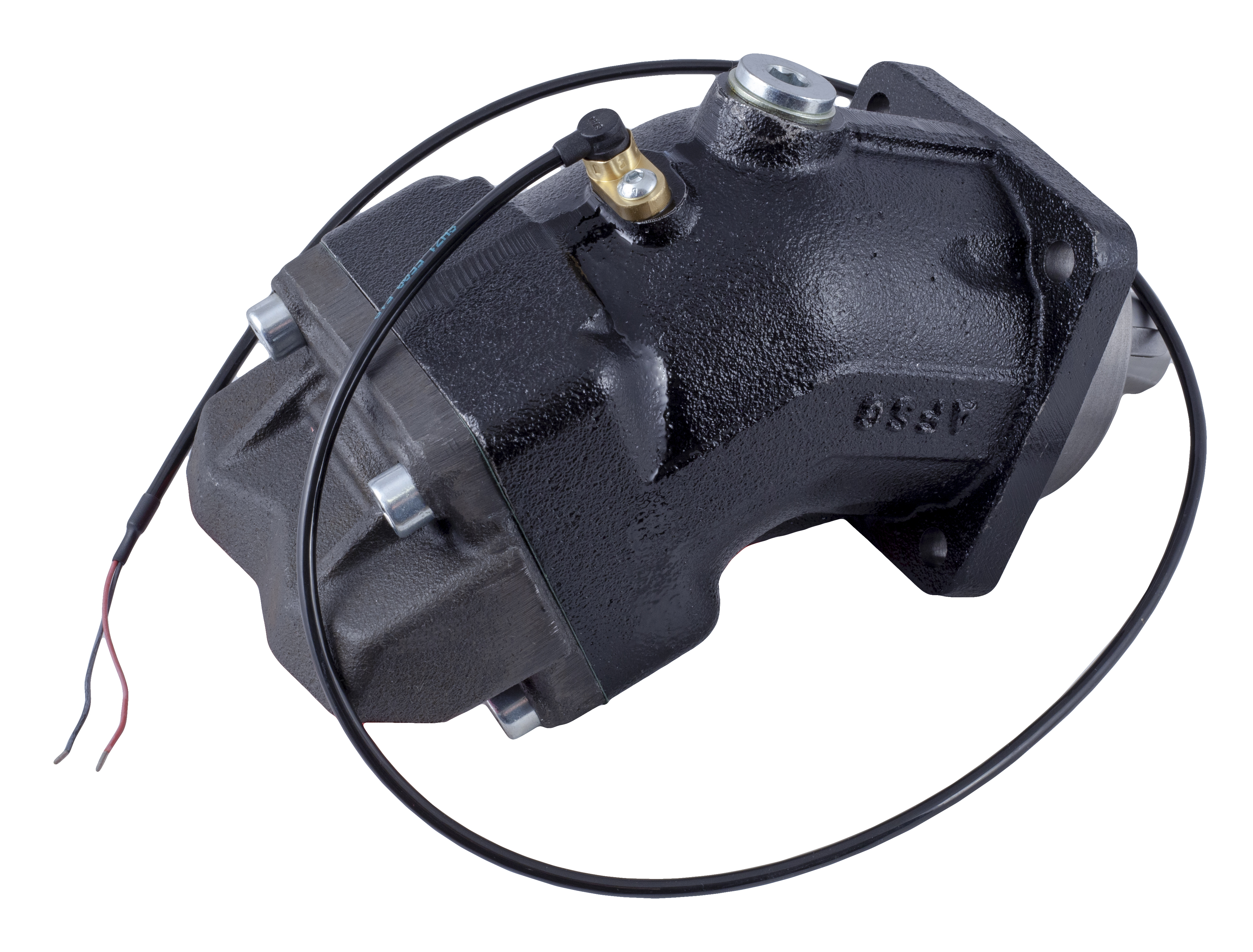

| HPM025-3019-K30-S90M | 100mm | 25 | 350/400 | 6300/6800 | 30mm | 24204713025 | 90 SAE 6000psi 1/2" | 1 |
| HPM034-3019-K30-BSPP | 100mm | 34 | 350/400 | 6300/6800 | 30mm | 24204701034 | G3/4" | 1 |
| HPM034-3019-K30-S90 | 100mm | 34 | 350/400 | 6300/6800 | 30mm | 24204713034 | 90 SAE 6000psi 1/2" | 1 |
| HPM040-3019-K30-BSPP | 125mm | 40 | 350/400 | 5000/5500 | 30mm | 24404701040 | G1" | 1 |
| HPM040-3019-K30-S90 | 125mm | 40 | 350/400 | 5000/5500 | 30mm | 24404713040 | 90 SAE 6000psi 3/4" | 1 |
| HPM047-3019-K35-S90 | 125mm | 47 | 350/400 | 5000/5500 | 35mm | 24405013047 | 90 SAE 6000psi 3/4" | 1 |
| HPM055-3019-K30-S40 | 125mm | 55 | 350/400 | 5000/5500 | 30mm | 24404711055 | 40 SAE 6000psi 3/4" | 1 |
| HPM055-3019-K35-S40 | 125mm | 55 | 350/400 | 5000/5500 | 35mm | 24405011055 | 40 SAE 6000psi 3/4" | 1 |
| HPM064-3019-K35-BSP | 125mm | 64 | 350/400 | 5000/5500 | 35mm | 24405001064 | G1" | 1 |
| HPM064-3019-K35-S90 | 125mm | 64 | 350/400 | 5000/5500 | 35mm | 24405013064 | 90 SAE 6000psi 3/4" | 1 |
| HPM064-3019-K30-S90 | 125mm | 64 | 350/400 | 5000/5500 | 30mm | 24404713064 | 90 SAE 6000psi 3/4" | 1 |
| HPM064-3019-K35-S40 | 125mm | 64 | 350/400 | 5000/5500 | 35mm | 24405011064 | 40 SAE 6000psi 3/4" | 1 |
| HPM080-3019-K40-S40 | 140mm | 80 | 350/400 | 4000/4500 | 40mm | 24405011064 | 40 SAE 6000psi 1" | 1 |
| HPM080-3019-K40-S90 | 140mm | 80 | 350/400 | 4000/4500 | 40mm | 24605313080 | 90 SAE 6000psi 1" | 1 |
| HPM091-3019-K40-S90 | 140mm | 91 | 350/400 | 4000/4500 | 40mm | 24605313091 | 90 SAE 6000psi 1" | 1 |
| HPM109-3019-K40-S90 | 160mm | 109 | 350/400 | 4000/4500 | 40mm | 24805313108 | 90 SAE 6000psi 1 1/4" | 1 |
| HPM109-3019-K45-S90 | 160mm | 109 | 350/400 | 4000/4500 | 45mm | 24805613108 | 90 SAE 6000psi 1 1/4" | 1 |
| HPM130-3019-K45-S90 | 160mm | 130 | 350/400 | 4000/4500 | 45mm | 24805613130 | 90 SAE 6000psi 1 1/4" | 1 |
